TRC K20 K-Series BUDGET Tucked Engine Harness with Charge Harness K-Swap K24

• K-Swap Cars
• 02-04 RSX Type S
• 02-04 RSX Base
• 01-05 Civic EP3 (Type S or K24 Swap)

Note:

*New design uses factory RSX connectors.

*Will NOT fit RHD cars or RWD cars.

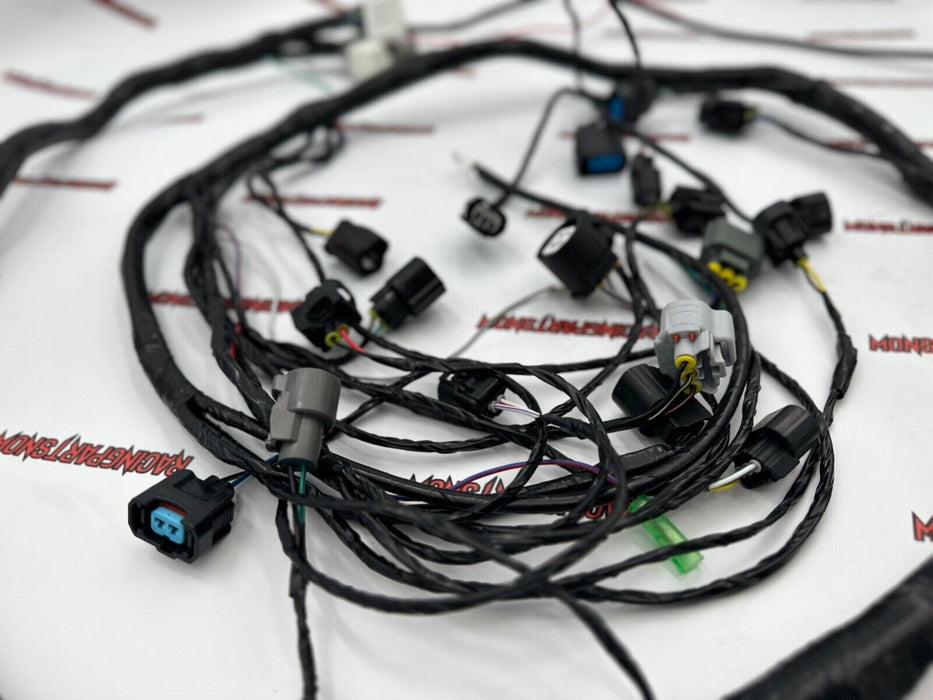

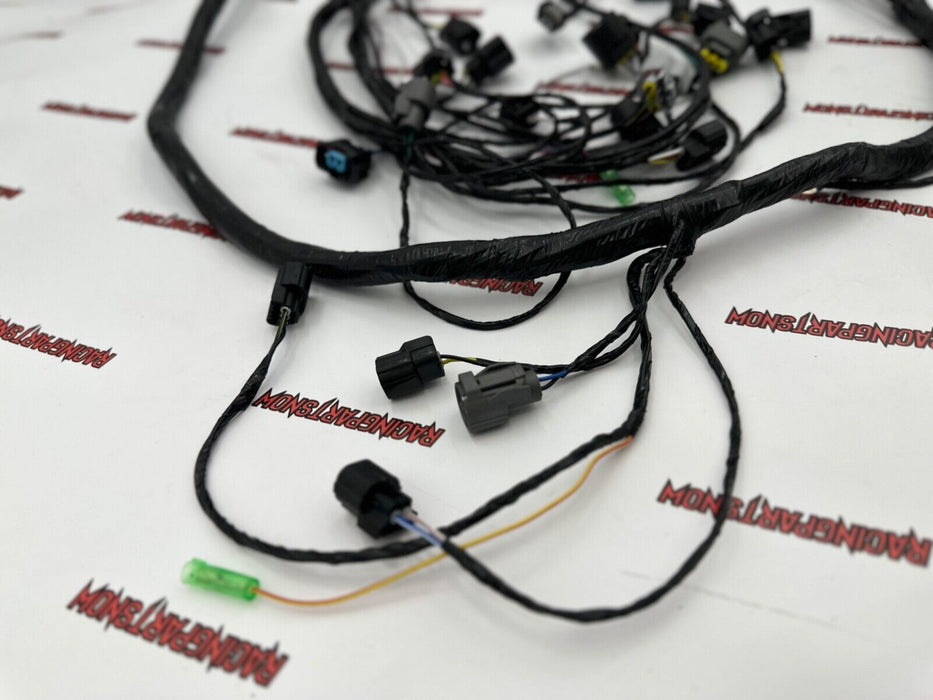

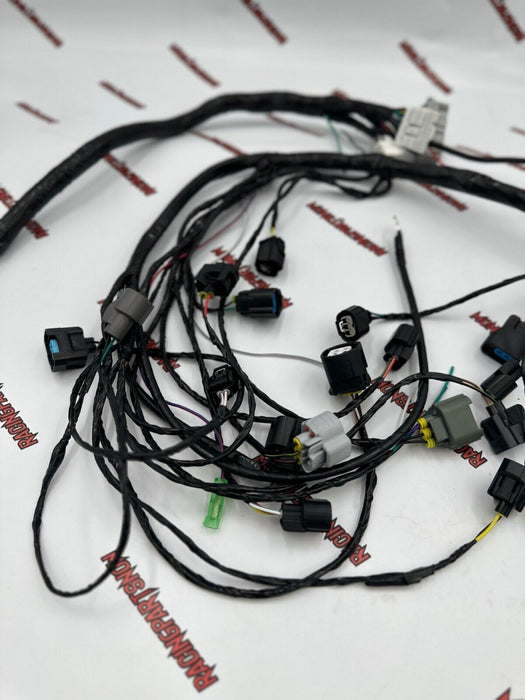

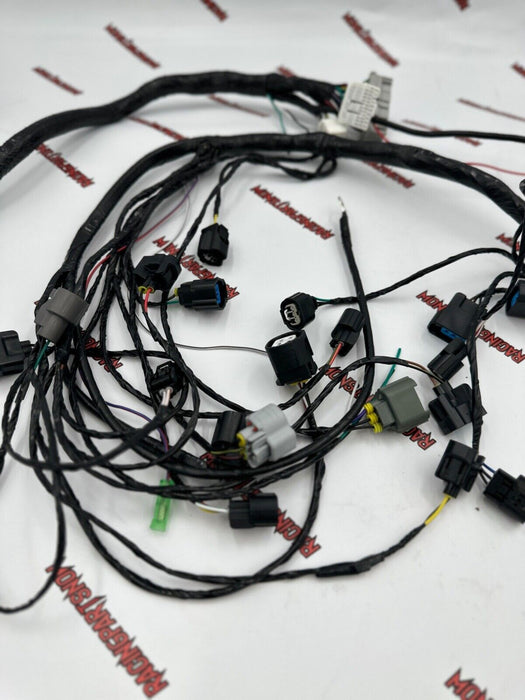

The Budget Engine Harness is designed as a high quality replacement 02-04 RSX Type-S harness that offers a super clean look. We have made the harness with lots of features so it will work with nearly all K-Series engine swaps and the 02-04 RSX Type S. It includes all the necessary plugs with a handful of extras (Fan Switch, IACV, Temp Sensor, ETC). We used only SAE certified automotive wiring resistant to moisture and most solvents to ensure quality and durability.

 We have also used a popular and clean tucked wire layout. The main harness runs over the valve cover and even hides the injector plugs, which come up from under the manifold. OBD2 HONDA injector plugs come with all harnesses.   On swap chassis, the power wire will work with fuse box in factory location or relocated under the dash. Separate power wire is available for other chassis and those that prefer to run their own charge wiring. Everything is labeled clearly to ensure a simple installation and no confusion.

Features:

• All plugs included except EVAP and AC
• SAE Certified Automotive Grade Wiring
• Tucked design
• Harness runs over valve cover (Can be covered with coil pack cover)
• Injector wiring runs from under manifold between middle runners.

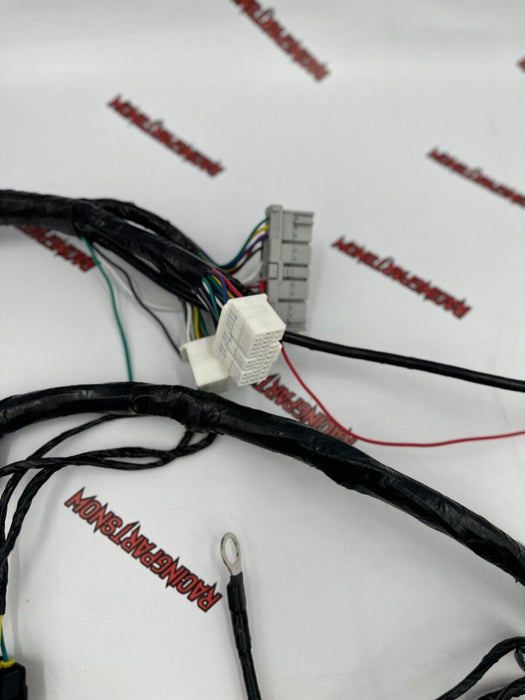

• Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)

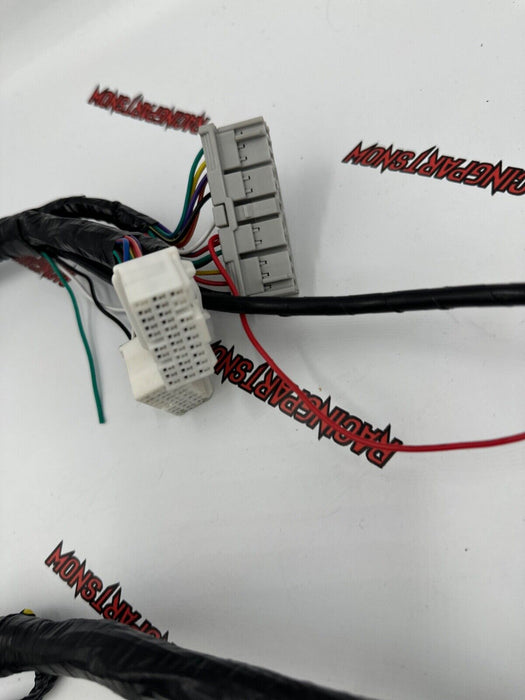

• 3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
• Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS)
• Each harness is inspected and tested before shipping.
• RSX injectors plugs come standard
