TRC 150PSI Stainless Fuel Oil MAP AIR Pressure Sensor Sender Connector 1/8" NPT

Original price $99.99 - Original price $99.99
Original price
$99.99
$99.99 - $99.99
Current price $99.99
In stock and Ready to Ship.

Temple Racing Co

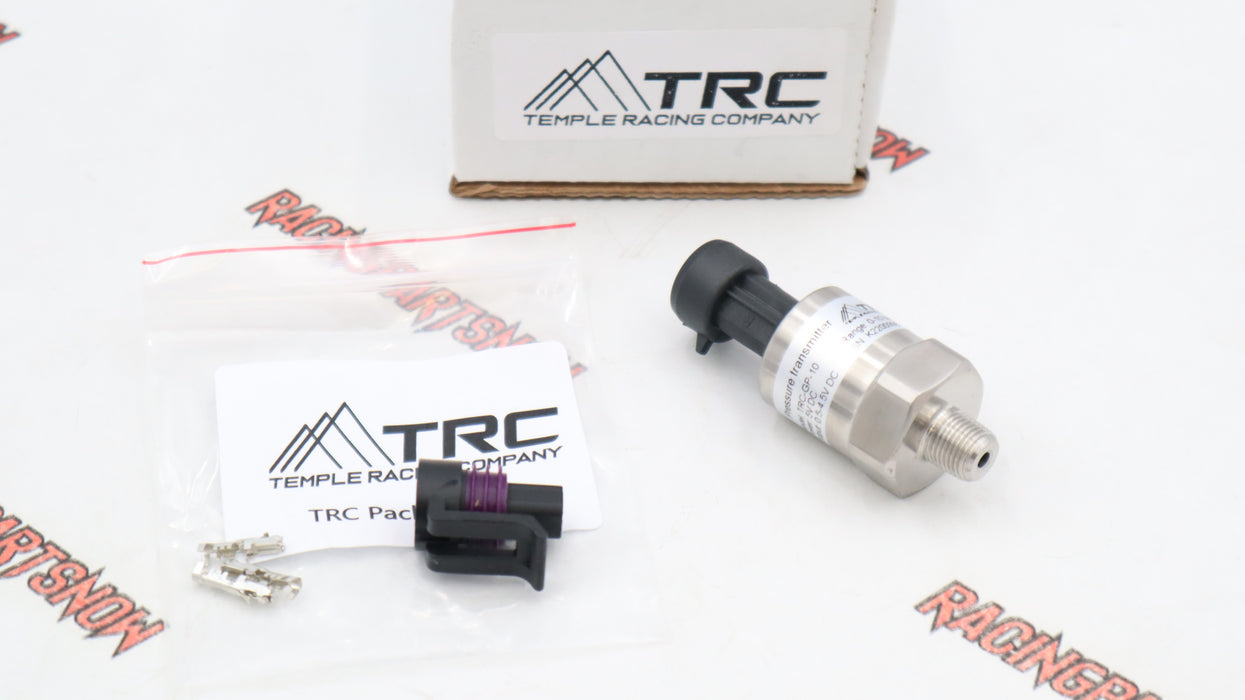

150psi Pressure Sensor For Oil,Fuel,Nitrous,Brake Pressure

The scariest thing for a car guy is not knowing whats wrong with his engine. Supplying your standalone engine management with information like your fuel pressure will help protect your engine from failure. No more second guessing what the problem is when you have the data to back up your hunch.

Here at TRC we developed sensors we use on our own cars that we race down the track. Many OEM sensors cant cut it when it comes to continual reliable readings with an engines vibration and all the chemicals that have accumulated on your engine. That's why we developed these robust sensors that wont fail during high temp / high vibration situations.

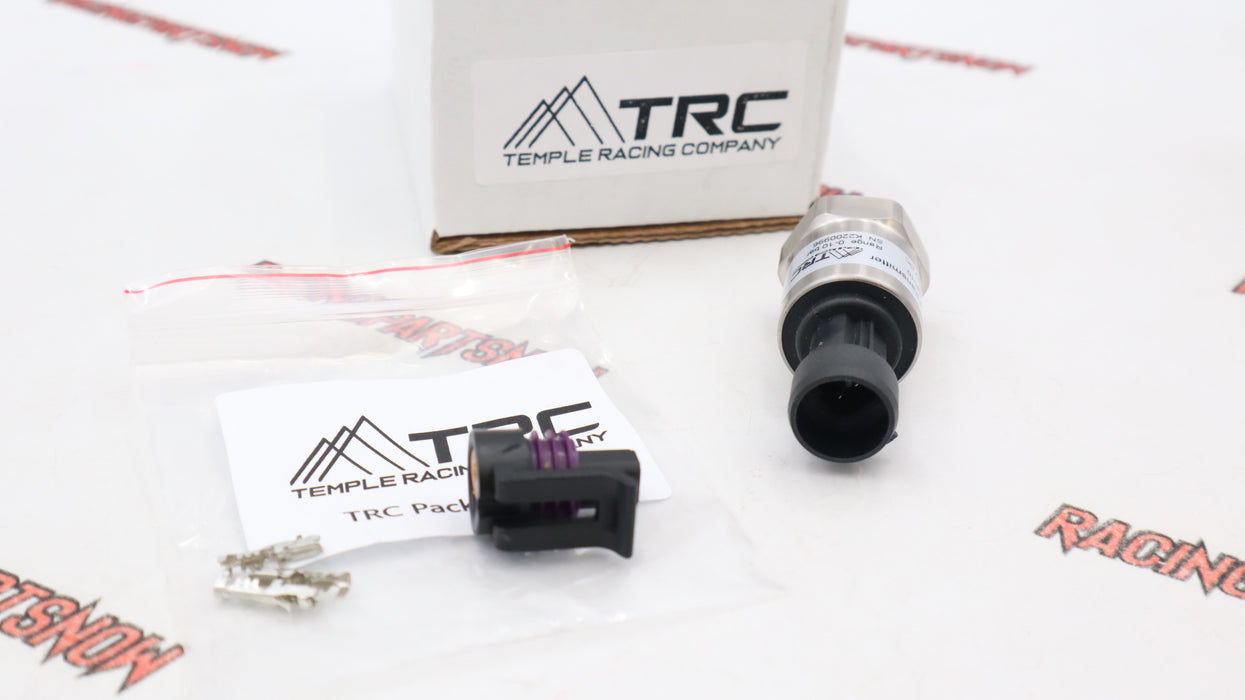

We include a Packard connector and full instructions with all the data you need to get it running on your standalone system.

Compatible with Hondata / Megasquirt / Motec / Haltech / Holly / AEM / Adaptronic / and many more....

Gauge style (PSIg) Pressure Sensors
TRC offers high quality PSIg sensors. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure et


  • Output: 0.5-4.5V
  • Supply: 5V
  • Range: 0-150 psi
  • Thread size: 1/8" NPT

Connector Pinout:

  • A - Ground
  • B - 5V
  • C - Signal
  • SPECS

    Performance Long Term Drift: 0.2% FS/YR (non-cumulative)

    Accuracy: 0.25% FS

    Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)

    Compensated Temp: -40°F to +257°F (-40°C to +125°C)

    Operating Temp: -40°F to +257°F (-40°C to +125°C)

    Zero Tolerance: 0.5% of span

    Span Tolerance: 0.5% of span

    Response Time: 1ms

    Fatigue Life: 1M Cycles

    Wetted Parts: 17-4 PH Stainless Steel

    Enclosure: IP67 (IP65 for electrical code G)

    Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)

    Shock: Withstands free fall to IEC 68-2-32 procedure 1

Our Pressure sensors are back by a 1 year warranty
